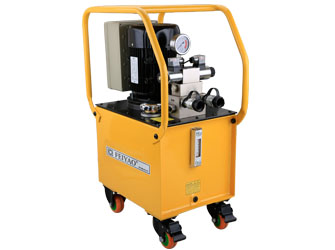

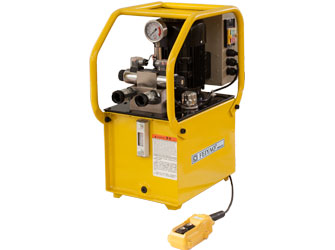

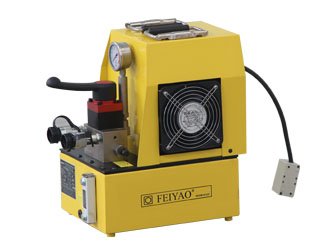

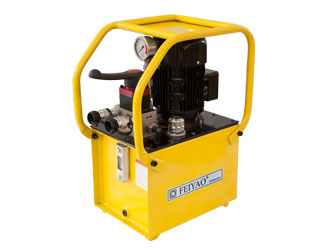

Electric Hydraulic pump

※ Pump type: single acting/double acting

※ Valve type: manual/solenoid

※ Oil tank capacity: 10-100L

※ Motor power: 0.55-7.5KW

※ Flow: 0.4-6L/min

Product Descriptions

Electric hydraulic pumps are pray coating, anti-corrosion, pollution-resistant, durable. Lightweight and compact design make it easy to be moved. Double speed pump design, with the high flow in low pressure. The actuator can be fast moved on no-load status.Internal high and low pressure automatic reversing valve and external adjustable pressure valve to make it easy to calibrate the working pressure and avoid the over load. Motor starter has the function of preventing overload, overheat and leakage. The pump can be matched with both double acting and single acting cylinders. Choosing the solenoid valve electric hydraulic pump, remote operation can be realized.


FY-SSB-55	FY-SSB-75


FY-SDB-75	FY-SSB-220

Model	Working Pressure (Mpa)	Pump Type	Valve Type	Oil Tank Capacity (L)	Motor Power (KW)	Flow (L/min)	Voltage (V)	Current Frequency (Hz)	Dimensions (mm)
FY-SSB-55	70	double acting	manual valve	10	0.55	0.4	220	50	430×285×430
FY-SDB-55	70	double acting	solenoid valve	10	0.55	0.4	220	50	430×340×430
FY-DSB-75	70	single acting	manual valve	16	0.75	1	380	50	440×290×580
FY-SSB-75	70	double acting	manual valve	16	0.75	1	380	50	440×290×580
FY-SDB-75	70	double acting	solenoid valve	16	0.75	1	380	50	500×290×580
FY-DSB-220	70	single acting	manual valve	32	2.2	2	380	50	500×350×775
FY-SSB-220	70	double acting	manual valve	32	2.2	2	380	50	500×350×775
FY-SDB-220	70	double acting	solenoid valve	32	2.2	2	380	50	500×350×775
FY-SSB-550	70	double acting	manual valve	70	5.5	4.5	380	50	690×480×950
FY-SDB-550	70	double acting	solenoid valve	70	5.5	4.5	380	50	690×480×950
FY-SSB-750	70	double acting	manual valve	100	7.5	6	380	50	800×520×1050
FY-SDB-750	70	double acting	solenoid valve	100	7.5	6	380	50	800×520×1050
