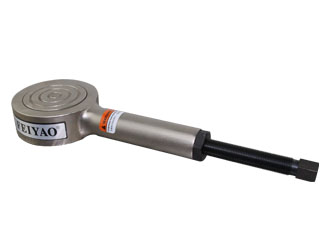

Ultra Low Height Mechanical Cylinder
-
※ Cylinder capacity : 5-50T
※ Closed height : 40-54mm
※ Stroke : 5-25mm
※ Outside diameter : 52-120mm
Product Features
-
Ultra low height mechanical cylinder’s compact, flat design, used in confined spaces where most cylinders will not fit.
-
Light, short, easy to carry, barrier-free working;
-
High-strength alloy steel, extending service life and strength;
-
Integrated screw hydraulic structure, no need additional hydraulic pump and hose;
-
Lifting capacity:5T-50T, Working stroke:5mm-25mm.
|
|
Capacity |
Stroke |
Min. Height |
Max. Height |
Outside Diameter |
Max. Length |
Min. Length |
|
(T) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
|
FY-SMC-525 |
5 |
25 |
52 |
77 |
52 |
275 |
195 |
|
FY-SMC-1025 |
10 |
25 |
54 |
79 |
62 |
348 |
237 |
|
FY-SMC-2005 |
20 |
5 |
35 |
40 |
84 |
289 |
218 |
|
FY-SMC-3005 |
30 |
5 |
36 |
41 |
95 |
314 |
236 |
|
FY-SMC-5005 |
50 |
5 |
40 |
45 |
120 |
401 |
293 |
